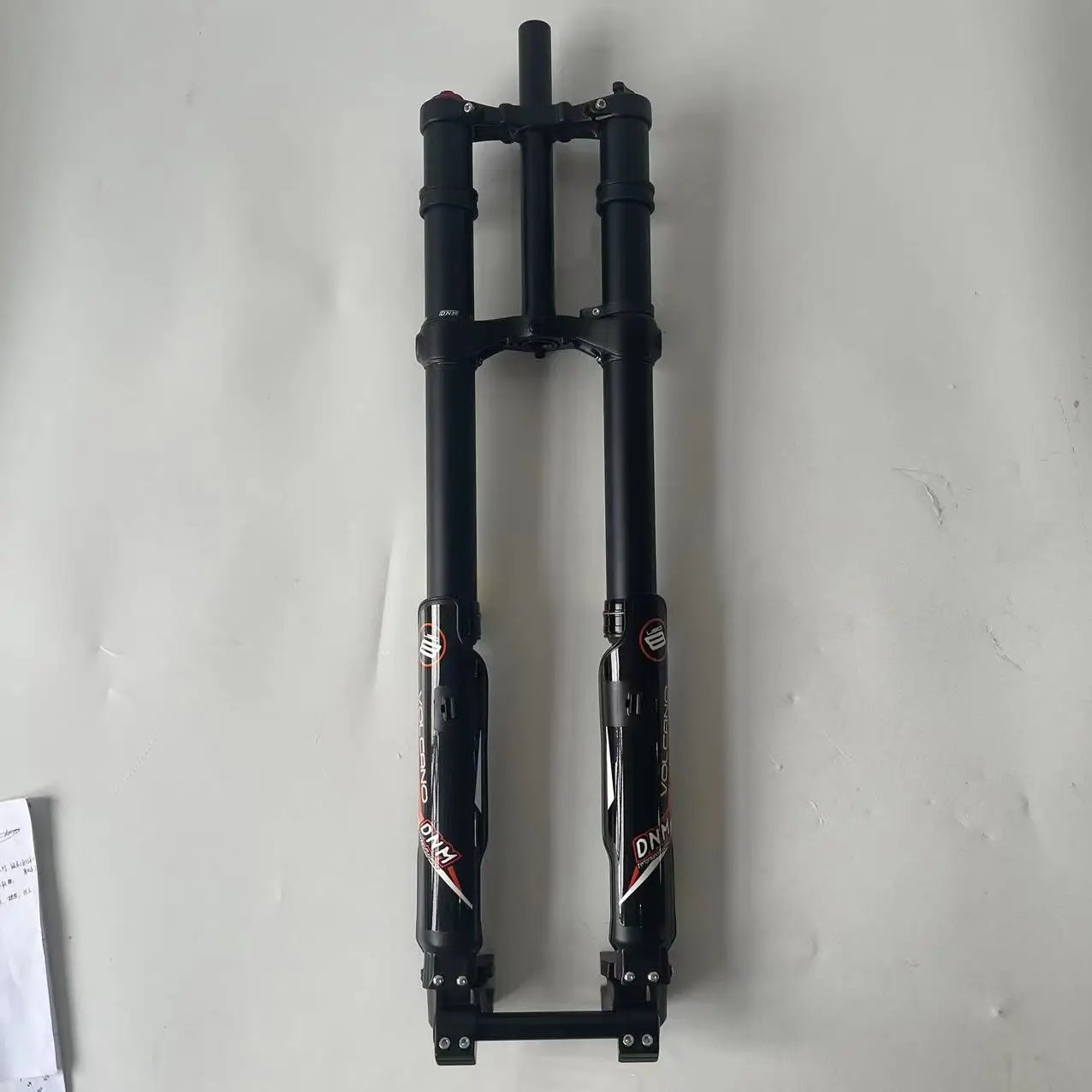

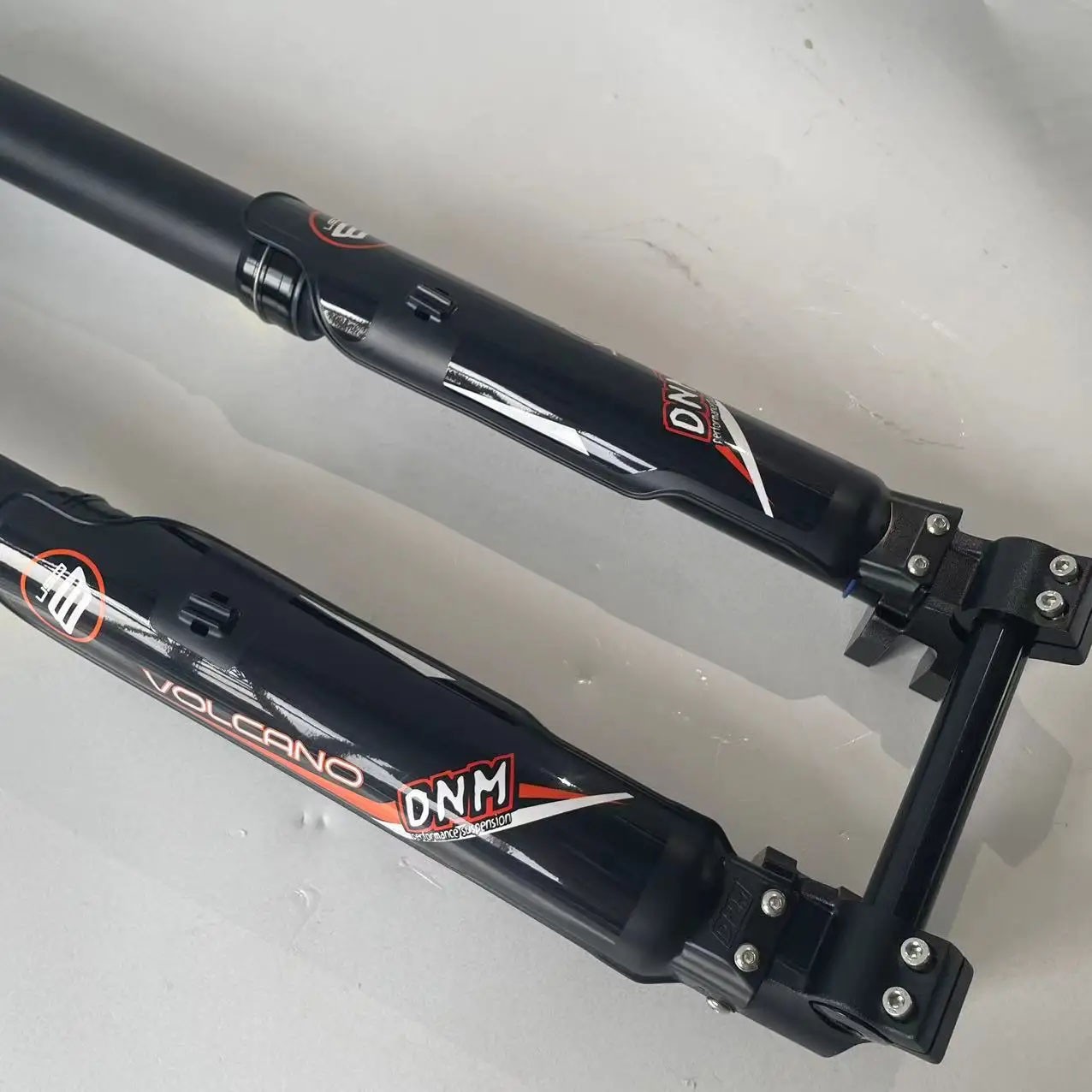

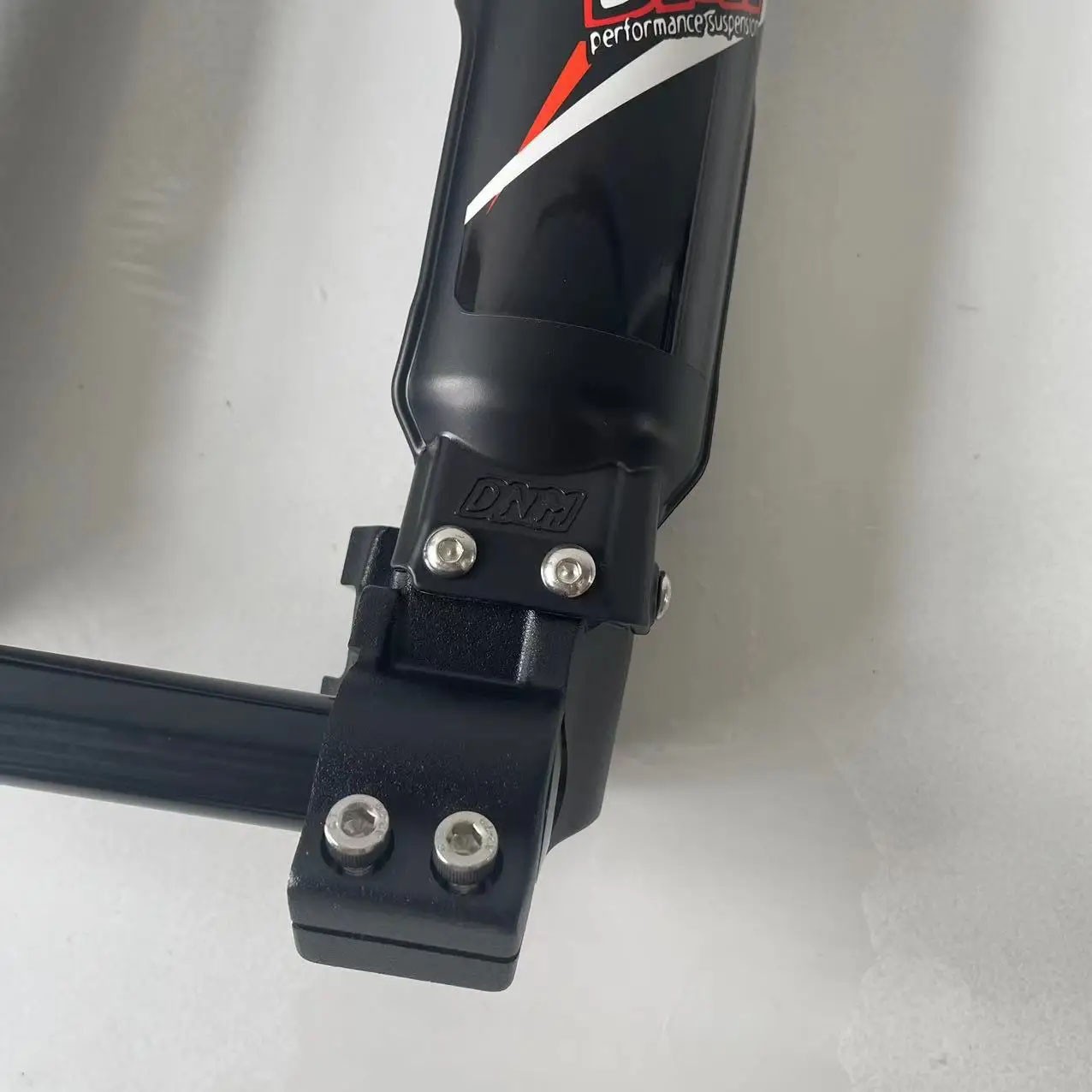

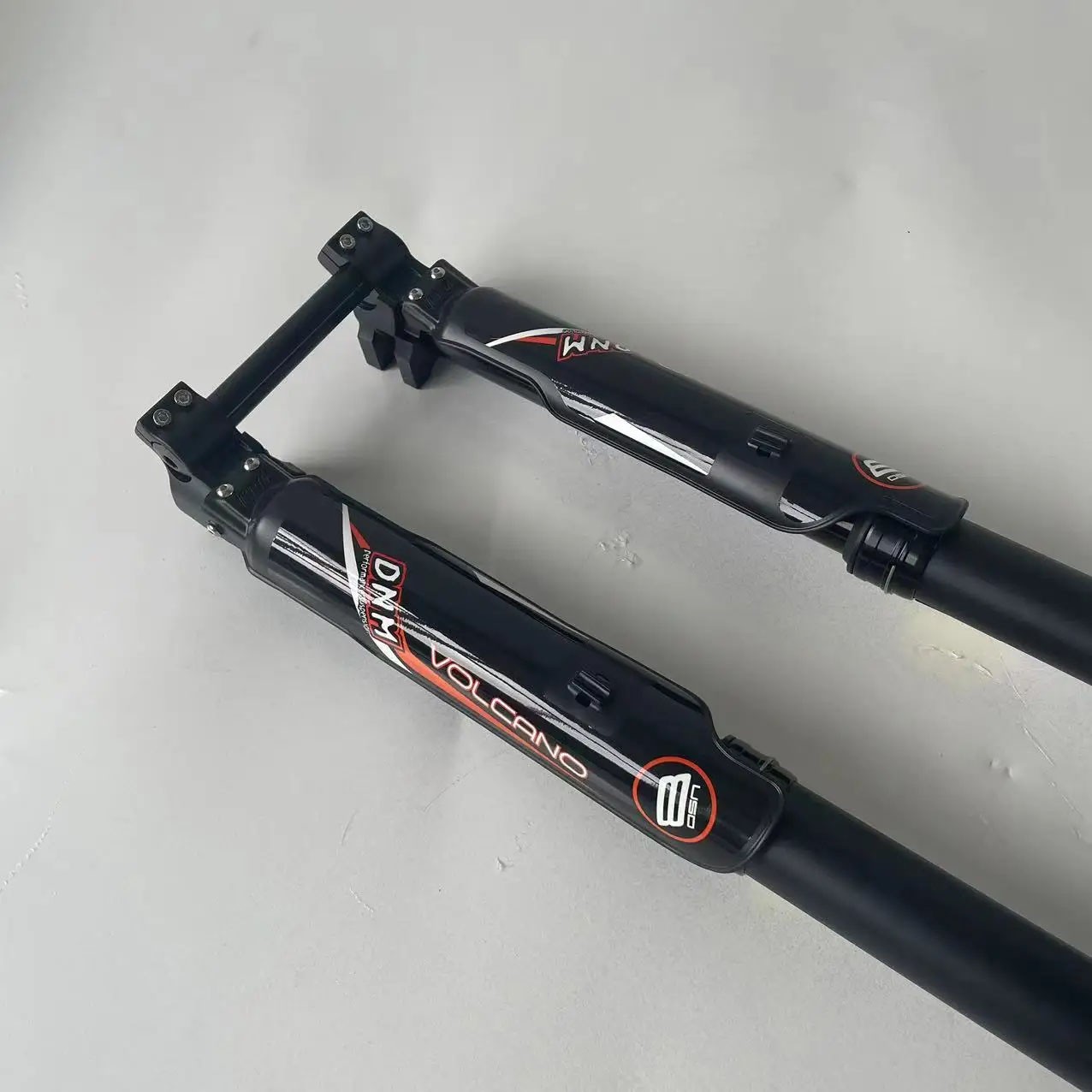

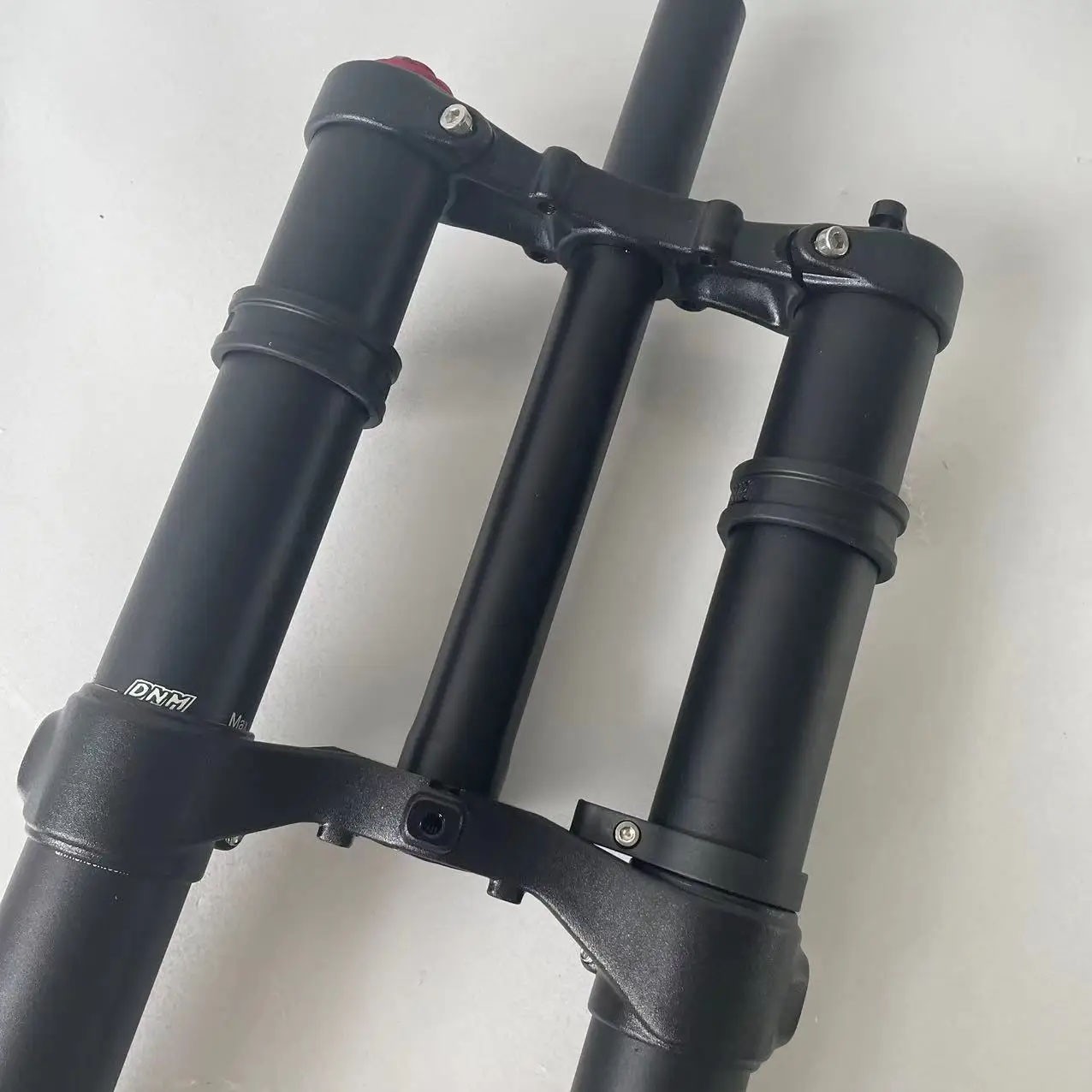

DNM Front Suspension Fork Stabilizes Structure Front Shock Absorber Front Fork
Length: 800MM
Specification: 110*800MM
Applications: Mining, metallurgy, construction, highway, railway.
DNM Front Suspension Fork Stabilizes Structure Front Shock Absorber Front Fork details
|
Weight |
3.8 KG ( 8.38 lb) |
|
Wheel size |
24/26/27.5 inch |
|
Travel |
112 mm ( 4.41 inch)/203 mm( 8 inch) |
|
Steerer tube |
28.6 mm (1.13 inch) （Straight）,1-1/8” to 1.5” （Taper）AL-7075 |
|
Drop out/Crown material |
Forging, AL-6061 |
|
Outer tube |
42 mm / AL- 6061 |
|
Inner tube |
35mm / AL-7075 Hard Anodized |
|
Down tube |
20 mm ( 0.79 inch ) Axle x110mm Thru-axle Design AL-7075 |
|
Features |
Inverted fork |
|
Inner structure |
Coil spring |
|
Adjustments |
Preload/Rebound/Air Pressure Adjustable |
|
Barke type |
Disc only ( Post mount) |
|
Riding style |
DH |
